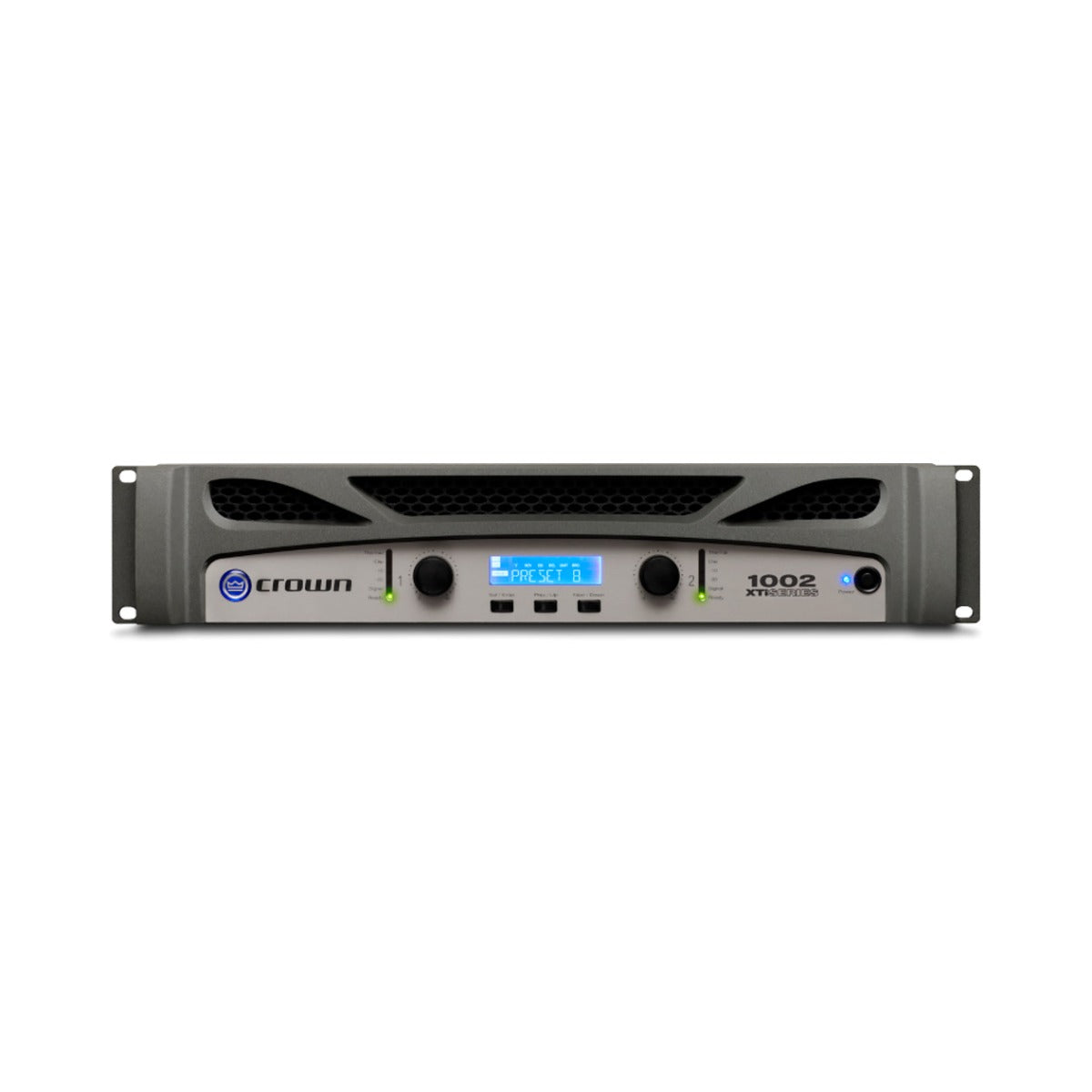

XTi1002, 2x500W/4ohm

Crown har uppdaterat den populära XTi serien med ett nytt utseende och en limiterfunktion som låter lite snyggare än på föregående modell. XTi serien består av 4 modeller med 500-2100W/4ohm per kanal. Det här är riktigt välbyggda steg med hög ljudkvalitet och effektiv kylning. Stegen har inbyggd DSP med funktioner för EQ, delningsfilter, limiter mm.

Effekt	XTi1002	XTi2002	XTi4002	XTi6002
2Ω Stereo (per ch.)	700W	1000W	1600W	3000W
4Ω Stereo (per ch.)	500W	800W	1200W	2100W
8Ω Stereo (per ch.)	275W	475W	650W	1200W
8Ω Bridge-Mono	1000W	1600W	2400W	4200W
4Ω Bridge-Mono	1400W	2000W	3200W	6000W

Dimensioner 1002/2002/4002: 485x89x311mm, 19"/2HE. Vikt: 8,4 Kg.
Dimensioner 6002: 485x89x412mm, 19"/2HE. Vikt: 10,9 Kg.





---

There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.

DSP function:

Input EQ:
6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.

Crossover Filters:
Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control.

Output EQ:
8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.

Delay:
For signal alignment of driver; 50 mS of total delay.

Subharmonic Synth:
Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.

Peak Limiter:
User defeatable limiter that allows users to control Threshold, Attack, and Release times.

Presets:
50 total presets, 49 of which are user-definable.

• Peak_x Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
• 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
• New system monitoring provides software visibility of AC line voltage and power supply temperature
• Integrated cast-aluminum handles for easy handling and enhanced durability
• Locking power cord clip provides a secure connection between the amplifier and power cord
• Updated HiQnet System Architect™ control software
• Increased number of presets to a total of 50; 49 of which are user definable
