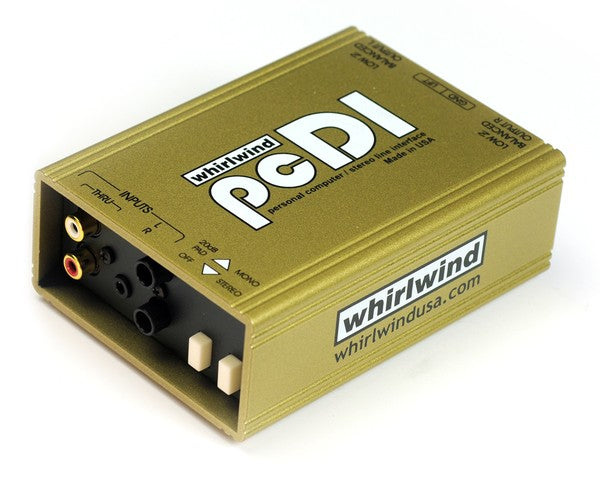

WHIRLWIND pcDI DIREKT BOX
SKU: 1959010
Lagerstatus: Tillfälligt slut
Ordinarie pris
3 825 kr
Inklusive moms
0
BESKRIVNING
PC DI Stereo Direct Box för att koppla ihop dator/ljudkort med PA etc. Ingångar: Minitele och RCA. Utgångar: XLR. OBS! Dämpar -20dB vid pad out och -40dB vid pad in.
Description:
This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.
Features: Color coded RCA phono in / through jacks 3.5 mm input jack 1/4" TS input jacks Color coded XLR output jacks Ground Lift switch to help eliminate hum and buzz Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs 20dB pad switch for connection to "hot" input signals Uses Whirlwind's TRHL-M transformers with metal shield
Model # - PCDI Impedance Ratio (input to output, per channel): 133:1 Frequency Response: 20Hz-20kHz ±1dB Level Change (input to output): -20dB (pad out), -40dB (pad in)
Description:
This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.
Features: Color coded RCA phono in / through jacks 3.5 mm input jack 1/4" TS input jacks Color coded XLR output jacks Ground Lift switch to help eliminate hum and buzz Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs 20dB pad switch for connection to "hot" input signals Uses Whirlwind's TRHL-M transformers with metal shield
Model # - PCDI Impedance Ratio (input to output, per channel): 133:1 Frequency Response: 20Hz-20kHz ±1dB Level Change (input to output): -20dB (pad out), -40dB (pad in)
