CN-3600S ECN-3600S E
CN-3600S E
CN-3600S E
FURMAN

CN-3600S E

SKU: FM-0190

Lagerstatus: Lagerstatus ej tillgänglig

Avvikande villkor:

Ordinarie pris 10,495 kr
/
Inklusive moms
0

BESKRIVNING

Påslags-sekvenser, CN-3600S E. Inkl. Nätfilter, Överspänningsskydd, Spikskydd.

CN-3600S E är en "smart sequencer" som inkorporerar allt som gjort Furmans påslagssekvensers till ett måste för installatörer och liveanvändare. Med RS232 kontakten kan man implementera och styra CN-3600S E i avancerade installationer. Med RS232 till Eathernet adaptern BB-RS232 kan man smidigt integrera CN-3600S E i olika IP Strukturer.

  • - Påslags-sekvenser
  • - Nätspik-skydd (SMP)
  • - Överspänningsskydd (EVS)
  • - Nätfilter (LIFT)
  • - On-Off switch med nyckel
  • - RS232 uttag- nätverksstyrning
  • - 16 Ampers kapacitet
  • - Nätutgångar: 9 utgångar om 3 isolerade banker
  • - Uttag för bakbelysning
  • - Kan fjärrstyras vis RS232. 230V/16A.

SPECIFIKATIONER

  • Family Contractor Series 240V
  • Line Voltage 240 Volts
  • AC Voltage Input Range 180-270VAC, 50/60Hz
  • AC Cord 1.5mm² x 3, 2.5m Long, black, IEC C19 Female to Schuko CEE 7/7 Male Plug

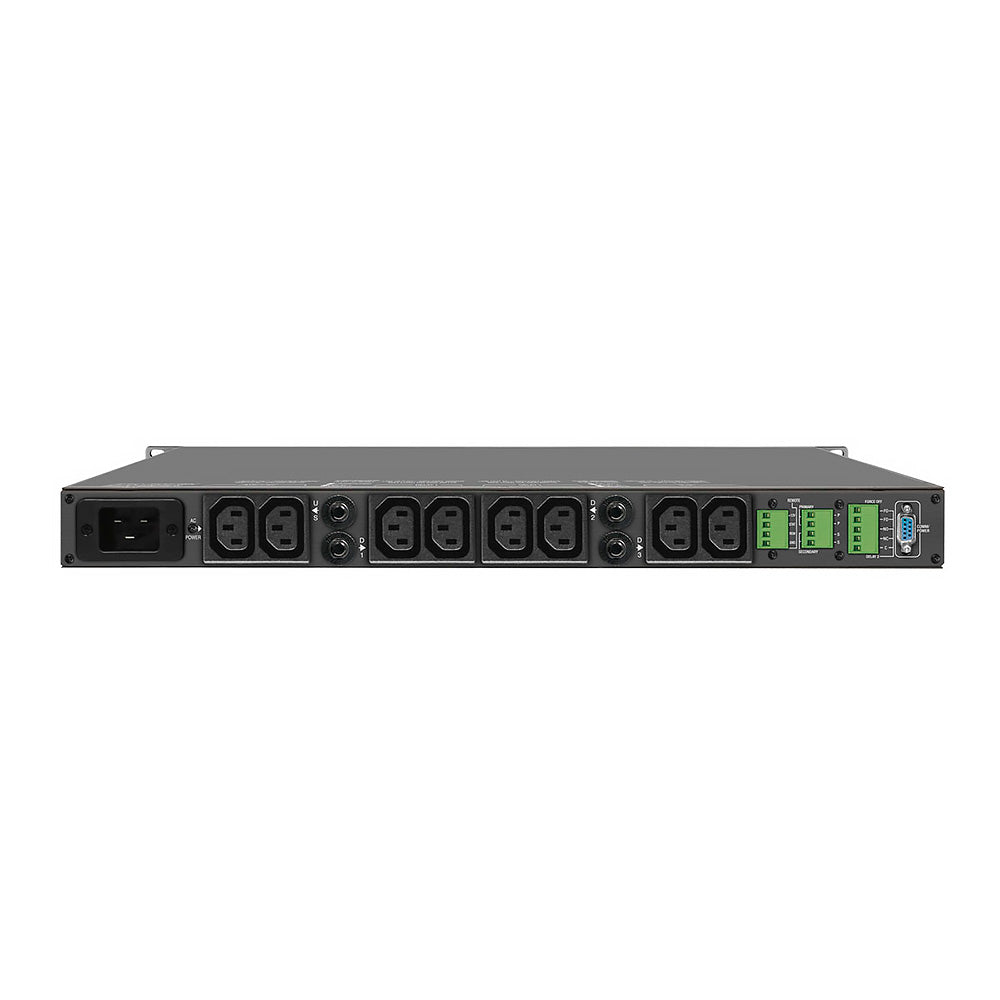

  • Rear Panel Outlets 1 IEC C13 pair (Unswitched), 3 IEC C13 pairs (Sequenced, each pair controlled by separate relay)
  • Front Panel 1 IEC C13 (Unswitched)
  • Surge/Under-Overvoltage Protection AC Surge Protection Series Multi-Stage Protection SMP
  • Spike Protection Mode Line to neutral, zero ground leakage
  • Spike Clamping Voltage 375V peak @ 6,000 volts/3,000 amps
  • Response Time 1 nanosecond
  • Maximum Surge Current 6,500 Amps
  • AC Undervoltage Protection EVS, 175VAC±3VAC
  • AC Overvoltage Protection EVS, 275VAC±5VAC
  • AC Overvoltage Reset Modes Manual and Auto-reset (configurable)
  • AC Filtering LiFT
  • Noise Attenuation Linear, 10dB @10KHz, 40dB @100KHz, 50dB @500KHz
  • Operating Temperature Range 5°C (40°F) to 40°C (105°F)
  • Humidity Range <90% rH (Relative Humidity)
  • Keyswitch Front panel, 3-position keyswitch (On, Off, Remote)
  • Keys Included, 1 pair
  • Pushbutton Switch Front panel, hidden by security cover
  • Circuit Breaker Front panel, pushbutton, 20A Thermal Breaker

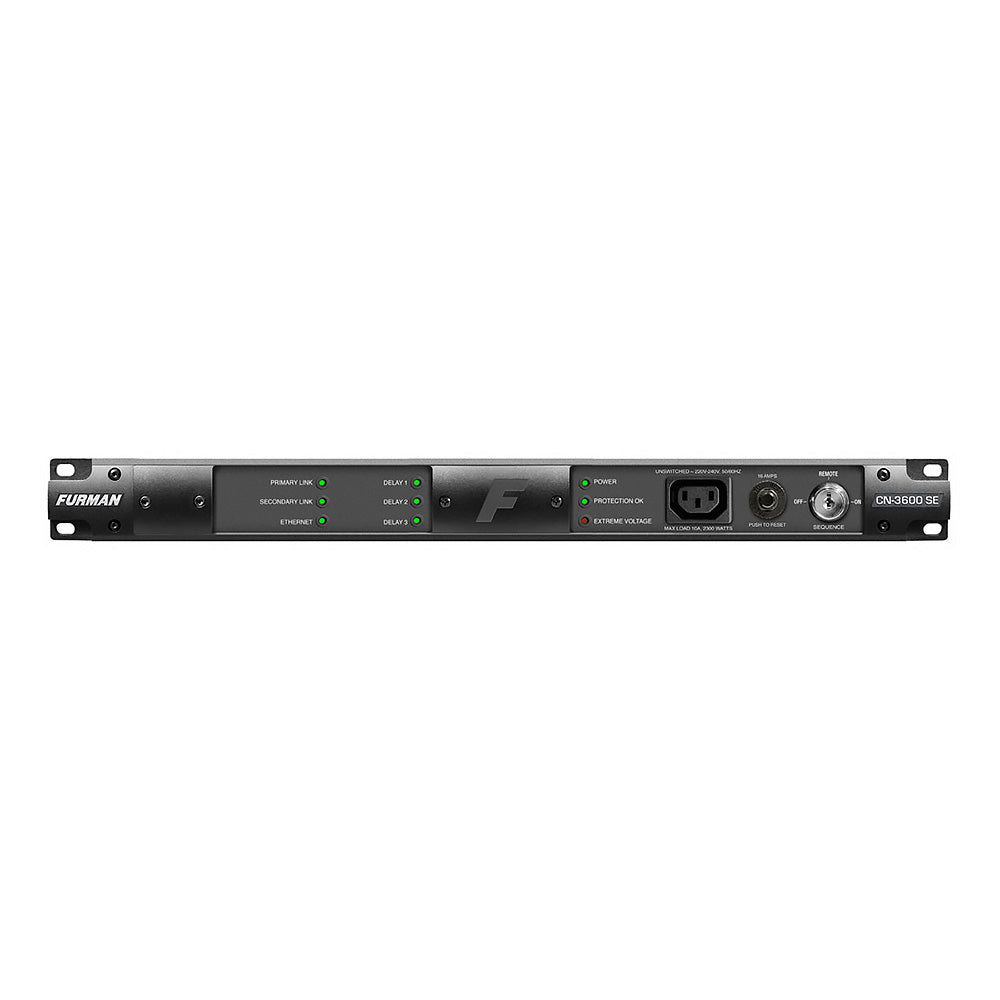

  • Front Panel Diagnostic Indicators Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
  • Front Panel DIP Switches Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
  • Potentiometer Front panel, hidden by security cover, fine-tune delay adjust
  • Control/Status/Triggering (Rear Panel) Remote Terminal +5-30VDC In, 12VDC (12mA) Out
  • SmartSequencing Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
  • Remote Terminal Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Force Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
  • RS-232 Compatible Yes, DB-9 Connector
  • Voltmeter Available with RS-232, ± 2VAC accuracy
  • Ampmeter Available with RS-232, ±1A accuracy
  • Power Consumption (No Load) 10 Watts
