ACT-747, 4-kanals mottagare 5UB

SKU: 113012008

Lagerstatus: Lagerstatus ej tillgänglig

Ordinarie pris 18 995 kr

Inklusive moms

BESKRIVNING
SPECIFIKATIONER

BESKRIVNING

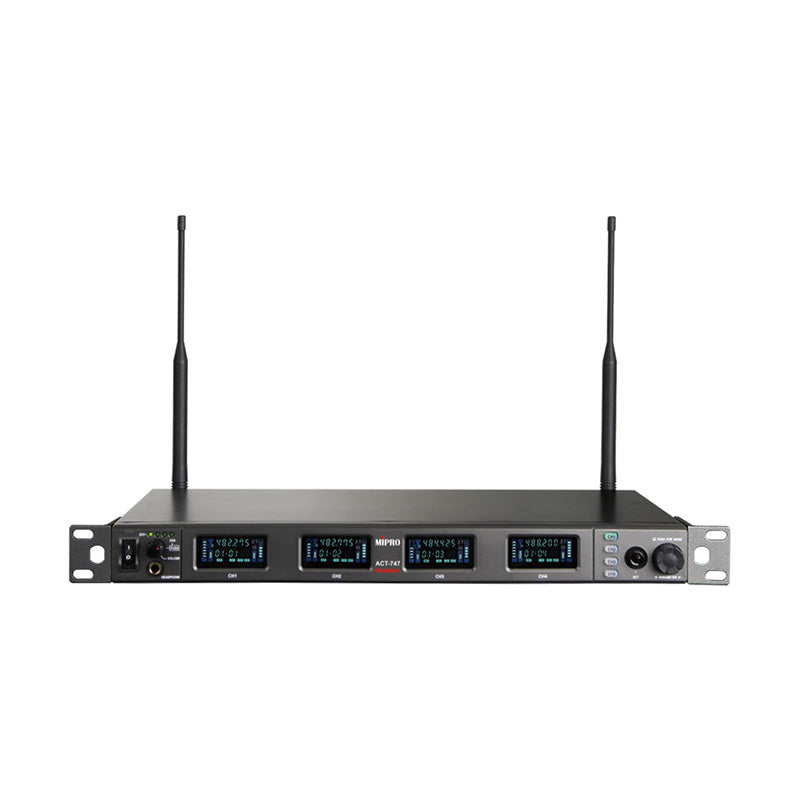

Mipro ACT-747, 4-kanals mottagare på 554-626MHz (5UB).
Kompatibel med ACT-700H & ACT-700T sändarna.

Rackvinklar finns som tillbehör: Mipro FB-72.

SPECIFIKATIONER

Channel Quad
Chassis EIA standard full-rack (19") metal chassis
Monitor Output Monitor headphone jack with volume control
Network Interface Optional Dante
Display Color VFD
Frequency Range UHF 554-626 MHz (5UB)
Bandwidth 72 MHz
Receiving Mode True Diversity
Sensitivity 6 dBμV @ S/N > 80 dB
Frequency Response 50 Hz – 18 kHz
Dynamic Range > 111 dBA
Audio Output Balanced +16 dB / 0 dB / -6 dB, Unbalanced +10 dB / 0 dB / -6 dB
PC Interface USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately)
Antenna 50Ω TNC female connector provides bias for the MIPRO antenna systems
Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply (included)
Dimensions 420 × 44 × 219 mm (W × H × D)
Weight Approx. 2.5 kg
