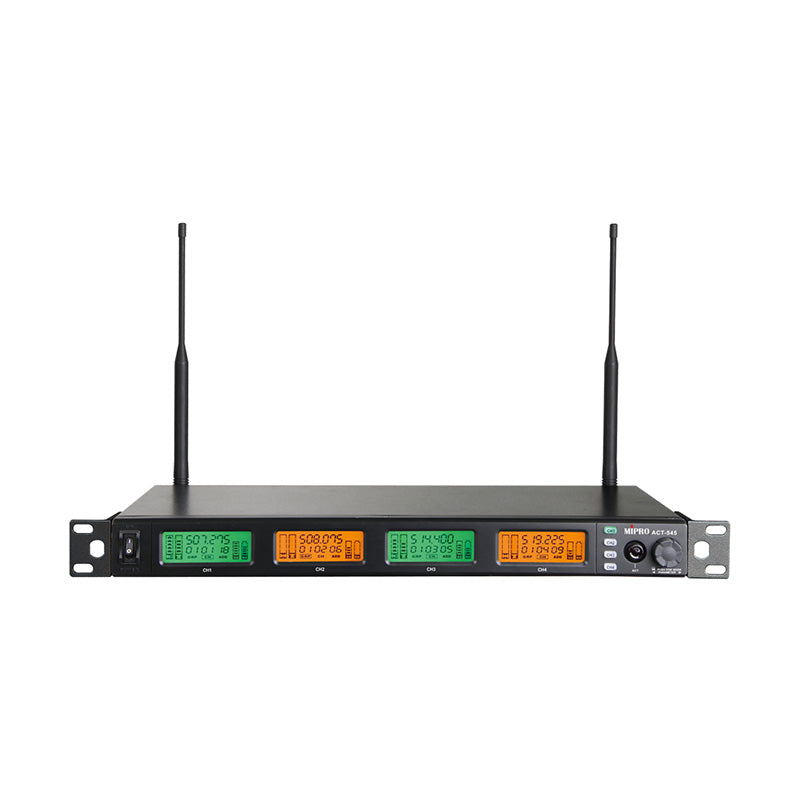

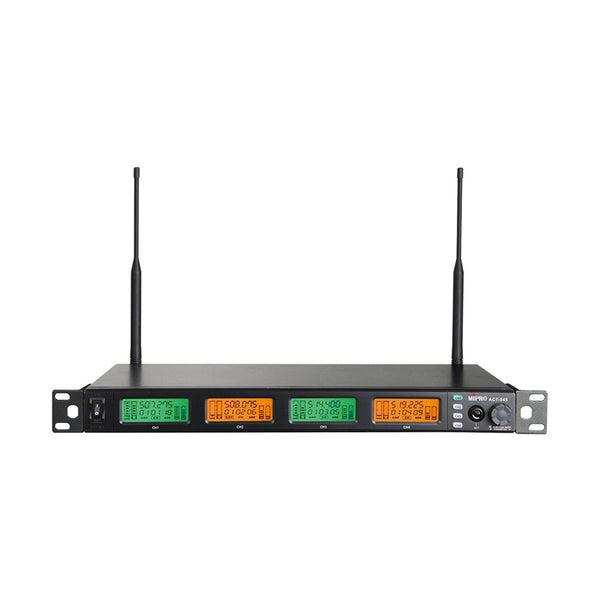

ACT-545, 4-kanals mottagare 5A
ACT-545, 4-kanals mottagare 5A
MIPRO

ACT-545, 4-kanals mottagare 5A

SKU: 113002006

Lagerstatus: Lagerstatus ej tillgänglig

Ordinarie pris 14 495 kr
/
Inklusive moms
0

BESKRIVNING

Mipro ACT-545, 4-kanals mottagare på 507-529MHz (5A).
Kompatibel med ACT-500H & ACT-500T sändarna.

Rackvinklar finns som tillbehör: Mipro FB-72.

SPECIFIKATIONER

  • Channel Quad
  • Chassis EIA standard full-rack (19") metal chassis
  • Display Two-color backlit LCD
  • Frequency Range UHF 507-529 MHz (5A)
  • Bandwidth 24 MHz
  • Receiving Mode True Diversity
  • Sensitivity 6 dBμV @ S/N > 80 dB
  • Frequency Response 50 Hz – 18 kHz
  • Dynamic Range > 111 dBA
  • Audio Output Balanced +16 dB / 0 dB / -6 dB, Unbalanced +10 dB / 0 dB / -6 dB
  • Network Interface Optional Dante
  • PC Interface USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately)
  • Antenna 50Ω TNC female connector provides bias for the MIPRO antenna systems
  • Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply (included)
  • Dimensions 420 × 44 × 219 mm (W × H × D)
  • Weight Approx. 2.4 kg
