ACT-848 Dante, 4-kanals mottagare 5UB

Name: ACT-848 Dante, 4-kanals mottagare 5UB
Brand: MIPRO
SKU: 113004028
Price: 31995.00 SEK
Availability: InStock

SKU: 113004028

Lagerstatus: Lagerstatus ej tillgänglig

Ordinarie pris 31 995 kr

Inklusive moms

BESKRIVNING
SPECIFIKATIONER

BESKRIVNING

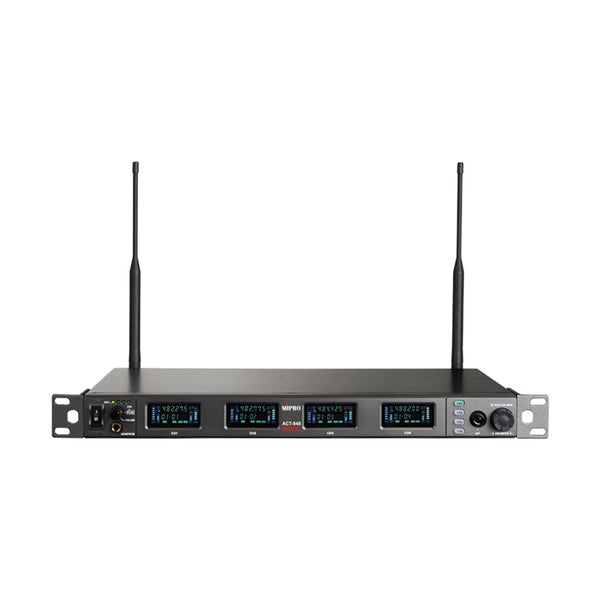

Mipro ACT-848 Dante, 4-kanals mottagare på 554-626MHz (5UB).
Kompatibel med ACT-800H, ACT-800T & TA-80 sändarna.

Rackvinklar finns som tillbehör: Mipro FB-72.

SPECIFIKATIONER

Channel Quad
Chassis EIA standard full-rack (19") metal chassis
Monitor Output Monitor headphone jack with volume control
Network Interface Dante
Display Color VFD
Frequency Range UHF 554-626 MHz (5UB)
Bandwidth 72 MHz
Receiving Mode Digital Diversity
Sensitivity 12 dBμV @ S/N > 100 dB
Audio Processing DSP audio processor eliminates the compander noise that exists in analog systems
Encryption 256-bit
Frequency Response 20 Hz – 20 kHz (< -2 dB)
Dynamic Range > 120 dBA
Latency 2.9 ms
Audio Output AES/EBU digital interface. Analog balanced output with 3 switchable levels +16 dB / 0 dB / -6 dB
EQ Presets 10 digital audio and anti-feedback EQs
PC Interface USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately)
Antenna 50Ω TNC female connector provides bias for the MIPRO antenna systems
Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply (included)
Dimensions 420 × 44 × 219 mm (W × H × D)
Weight Approx. 2.3 kg
